Xh W1209 Temperature Controller Thermostat

W1209 Temperature Controller DC

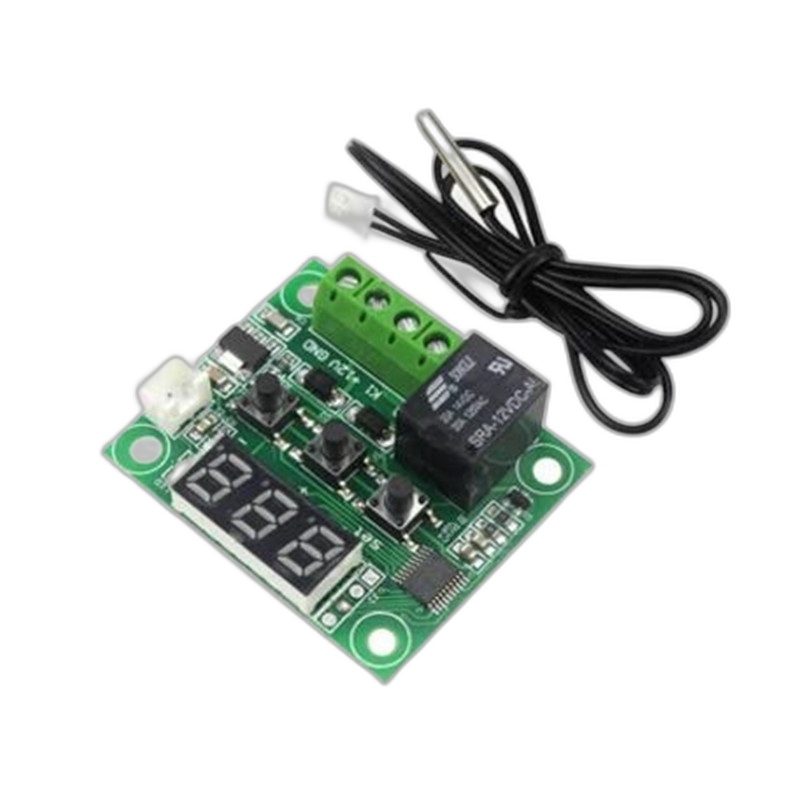

W1209 Temperature Controller DC  W1209 Digital Temperature Control Switch is a programmable thermostat. The same module can be used in both  controlling / maintaining Cold and Hot temperatures. Parameter 0 can be set to either Hot or Cold Control setting. The relay module is based on a microcontroller (MCU) and has 7 user configurable paramete accessible using 3 push buttons.

Features of this Product:

XH-W1209 Temperature Controller.



Precise Temperature Control up to 0.1C

Fast Acting Control of 0.5 seconds response time

With Water proof sensor

LED Display for Temperature, settings and warning

LED Relay Status Indicator

Output Relay can be used with both AC and DC circuits



  W1209 Temperature Controller DC

W1209 Temperature Controller.



Indoor Room Temperature Control

Aquarium temperature controller

Temperature controller for Controlled Temperature sheds

Food and Beverage temperature controller

Temperature controller for Health Care applications













XH-W1209 Temperature Controller.



Temperature range :-50-110 ℃

Dimensions: 48.5 * 40mm

Temperature control mode: ON / OFF

Resolution-When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃

Control accuracy: 0.1 ℃

Hysteresis accuracy: 0.1℃

Refresh rate: 0.5S

High temperature protection： 0-110℃

Supply voltage: DC 12V

Static current: ≤ 35MA, attract current ≤ 65MA

Operating voltage: DC 12V

Output Relay Specifications:



Max Current: 20A @ 110VAC, 10A @ 220VAC or 20A @ 14VDC

Operating Voltage: 115VAC, 220VAC, 50VDC





Measurement input: NTC (10K 0.5%) Waterproof Sensor

Environmental requirements: -10 ~ 60 ℃ ，Humidity 20% -85%

Probe Length: ~31cm / 12.2in (including thermocouple and wire)  en.wikipedia.org/wiki



A home thermostat is an example of a closed control loop: It constantly measures the current room temperature and compares this to a desired user-defined set point and controls a heater and/or air conditioner to increase or decrease the temperature to meet the desired set point. A simple (low-cost, cheap) thermostat merely switches the heater or air conditioner either on or off, and temporary ovehoot and undehoot of the desired average temperature must be expected
