Xh M452 Digital Temperature Humidity

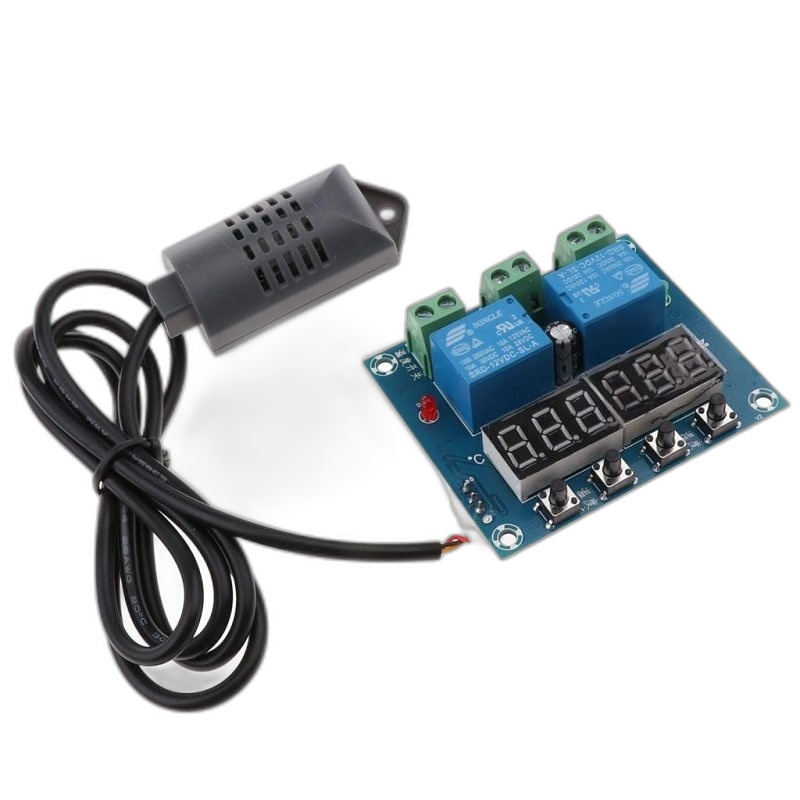

XHM452 Temperature Humidity Controller.

XHM452 Temperature Humidity Controller Temperature Control Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display Setting the temperature :Normal display mode, long press button for 3 seconds, stop numerical flashing temperature, press the + / key set value

Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888 Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / key



XHM452 Temperature Humidity Controller Specification:

Temperature Control:

Set Start Temperature: Long press ‘Temperature +’ to set start temperature by key ‘Temperature +’ and ‘Temperature -’ and the display will flash. It will save automatically after 5 seconds and then display the current actual temperature.

Set Stop Temperature: Long press ‘Temperature -’ to set stop temperature by key ‘Temperature +’ and ‘Temperature -’ and the display will flash. It will save automatically after 5 seconds and then display the current actual temperature.





Product Name: T/H controller, Model: XH-M452

Power supply voltage:DC12V

Temperature range:-20 ° C ~60 ° C

Humidity range:00% ~ 100%

Control precision:0.1°C 0.1%rh

Test probe: Integrated sensor

The output type: Relay output en.wikipedia.org/wiki

Output capacity:10A delay

weight: About 69G (including sensor)



Humidity Control:



Set Start Humidity: Long press ‘Humidity+’ to set start humidity by key ‘Humidity+’ and ‘Humidity-’ and the display will flash. It will save automatically after 5 seconds and then display current actual humidity.

Set Stop Humidity: Long press ‘Humidity-’ to set stop humidity by key ‘Humidity+’ and ‘Humidity-’ and the display will flash. It will save automatically after 5 seconds and then display current actual humidity.
