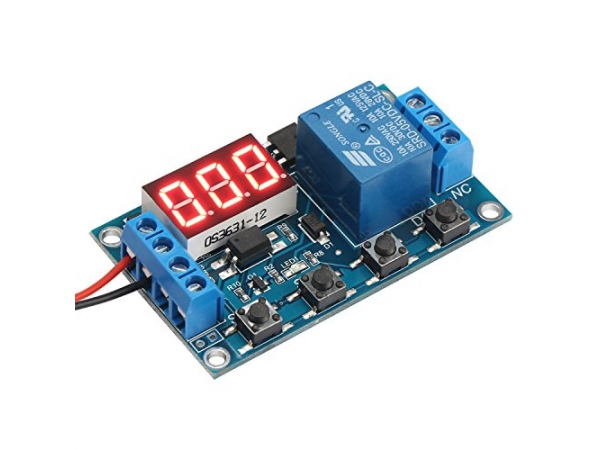

Ws16 6 30V Automation Cycle

Wide voltage power supply (6 ~ 30V), supports microUSB 5.0V power supply, easy to use;



The interface is clear and simple, powerful, easy to understand, meet almost all your needs;



The emergency stop function (“STOP” key);With reverse polarity protection, reverse polarity will not burn the product.



Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, then automatically turn off the monitor, any key wake-up;



You can set a different OP, CL, LOP parameters, which are independent of each other, and are automatically saved;



After the module is powered down, all parameter settings are not lost.







Product parameters:



1: Operating voltage: 6–30V, support microUSB 5.0V power supply



2: Trigger Source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system’s anti-jamming capability (customers can also shorting common ground).



3: Output capability: You can control the DC 30VDC 5A or  220VAC 5A device.



4: Quiescent Current: 20mA; Operating Current: 50mA



5: life: more than 10 million times; Working temperature: -40-85 ; Size:







6: with optocoupler isolation, enhanced anti-jamming capability, industrial grade board.







Special Note: The relay outputs are passive contact, just a switch.
