Wireless Charger Module Pcb Circuit

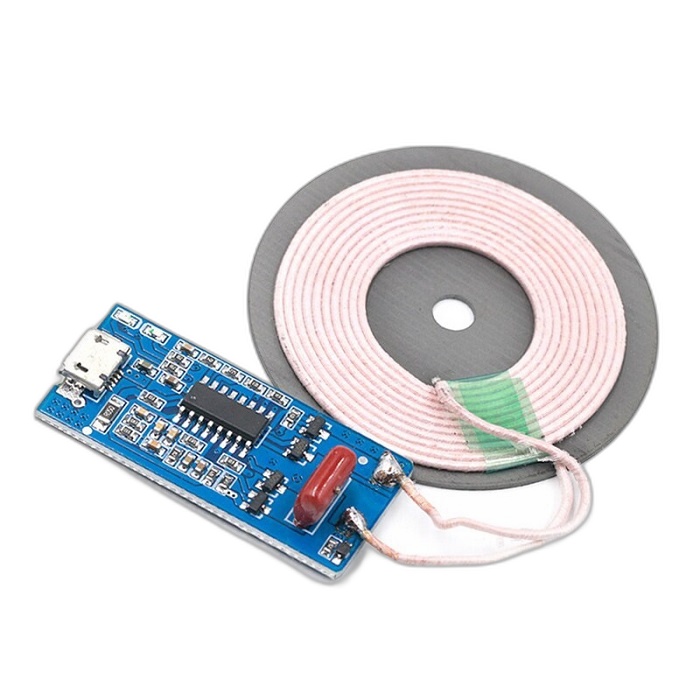

Wireless Charger PCB Board:

Wireless Charger PCB Board PCB Circuit with Coil Charging 5W Charger PCB Board Support over voltage, over current, over temperature protection, when the overload will stop charging, keeping your electronics safe.



Simple Operation: Adopts univeal USB interface, plug and play which is easy to use, so that there is no need for a special cable to connect to power.

Wide Application: Has a wide range of applications, suitable to be use for DIY wireless charging desktop, custom housing, car mount charging tools, and more.

High Efficiency: Our charging coil is a kind of efficient wireless charging coils, wireless output, high conveion rate, time saving and power saving.

PCB Material: Made of high quality PCB material with high strength and wear resistance, having good performance for long service life.

The Wireless Power Consortium (WPC) was establish in 2008, and in 2010 they establish the Qi standard. In 2012, the Alliance for Wireless Power (A4WP) and the Power Matter Alliance (PMA) were founded. Japan establish Broadband Wireless Forum (BWF) in 2009, and they established the Wireless Power Consortium for Practical Applications (WiPoT) in 2013. The Energy Harvesting Consortium (EHC) was also founded in Japan in 2010. Korea established the Korean Wireless Power Forum (KWPF) in 2011. The purpose of these organizations is to create standards for inductive charging. In 2018,



Wireless Charger PCB Board Features



Item Type: Wireless Charging Module



Material: PCB



Color: As Picture Shown



Application: for DIY Wireless Charging Tool



Gross Weight: Approx.29g/1.02oz



Type C Output: 5V/2A



Micro USB Output: 5V/2A



USB output: 5V/2.4A



Power: 5W



Charging Mode: Induction Mode, Cable Connected Charging Mode



Wireless Charging Conveion Efficiency: 70% en.wikipedia.org





Induction power transfer was fit used in 1894 when M. Hut in and M. Le-Blanc proposed an apparatus and method to power an electric vehicle. However, combustion engines proved more popular, and this technology was forgotten for a time

 Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
