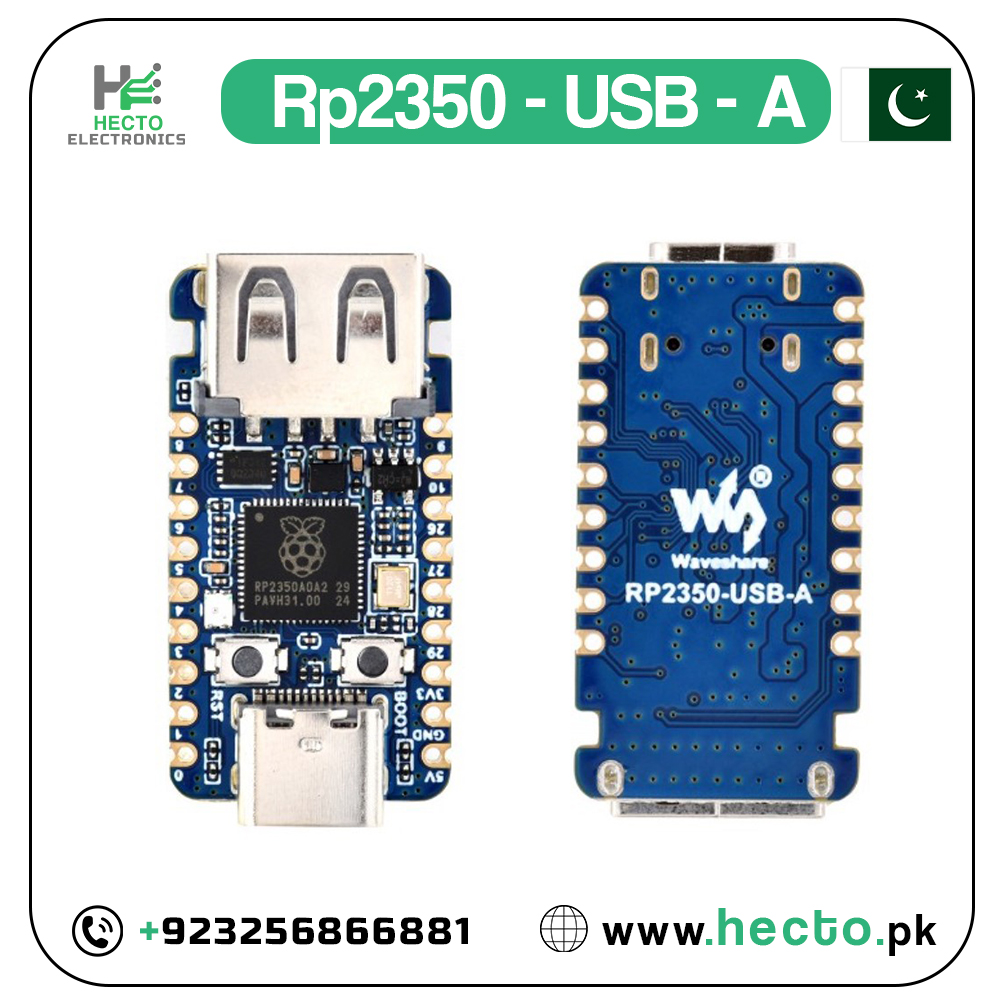

Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB of SRAM, and 2MB of onboard Flash memory
- Type-C connector, keeps it up to date, easier to use
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Adapting 15 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 14 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
