Type C Usb 2 3S

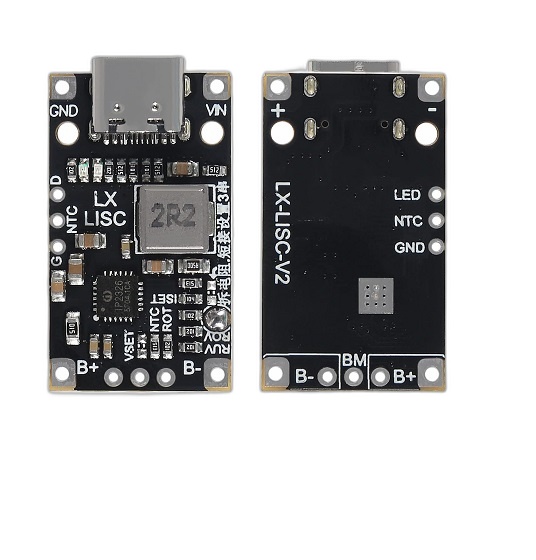

Model: LX LISC V2.2

Input Voltage: 5V (via Type-C port)

Output Current: Up to 2A

Compatible Batteries: 2S (7.4V) and 3S (11.1V) lithium-ion battery packs

Built-in Protections: Overcharge, overcurrent, and short circuit protection

Compact Design: Ideal for DIY projects and portable devices



Lithium Battery Charger 2S 3S Fast Charger

Support QC fast charge Lithium Battery Charger 2S 3S Fast Charger , 15W synchronous switching boost charging

Boost charging

efficiency 94%

Can be set to charge 2 or 3 strings of lithium batteries

2 strings with balanced charging

Adjustable charging current

Input overvoltage and under voltage protection

Adjustable charging timeout protection

Output overcurrent, overvoltage, short circuit protection





Lithium Battery Charger 2S 3S



1.Input : type-c port or wire input.

Output: support 2 strings and 3 strings, the battery needs to add a protection plate.

2.Current setting: two parallel current Settings Streams default to 100K(0.9A) and 180K (0.5A). The formula is current

3.Battery charging voltage setting: the default single string is 4.2V, general battery that’s the same value, you don’t have to change it.

Check the RVSET Settings table, just set the board VSET resistance.

4.LED indicator light: normal red light is on, charging process blue light.

When the indicator is full, the blue indicator turns off and blinks when an exception is detected.
