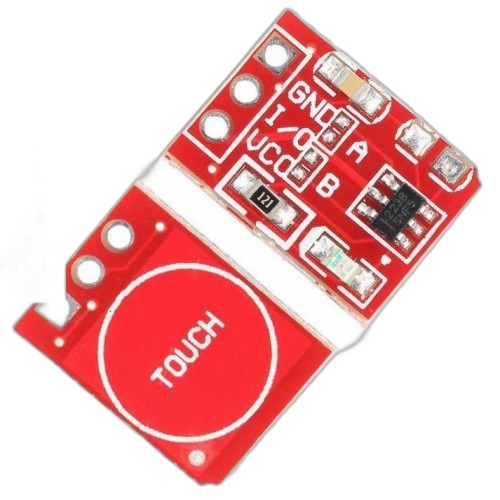

Ttp223 Capacitive Touch Sensor Module

TTP223 Capacitive Touch Sensor Description

TTP223 Capacitive Touch IC replicating a single tactile button. This touch detection IC is designed for replacing traditional direct button key with divee pad size.TTP223 Capacitive Touch Sensor

TTP223 Capacitive Touch Sensor Features

TTP223 Capacitive Touch Sensor

1. Input Voltage: 3.3V – 5.5V DC

2. Module size: 15mm x 11mm

3. Stable touching detection of human body for replacing traditional direct switch key.

TTP223 Touch Key Switches Module Touching Button Self-Locking No-Locking Capacitive Switches Single Channel For Arduino

1.Size:15*11mm



2.Power:2.5-5.5V

Trigger setting mode: (1- > Short ; 0- > No Short)



AB=00:No-lock High TTL level output;



AB=01:Self-lock High TTL level output;



AB=10:No-lock Low TTL level output;



AB=11:Self-lock Low TTL level output;

About This item

TTP223 Capacitive Touch Sensor Button Module pad in circle Operating voltage 2.2 up to 5.5v Stable touching detection of human body Dc in Pakistan

1. Input Voltage: 3.3V – 5.5V DC TTP223 Capacitive Touch Sensor

2. Module size: 15mm x 11mm

3. Stable touching detection of human body for replacing traditional direct switch key.

For this tutorial, we required these items:

1. TTP223 Touch Sensor Module ( Capacitor)

2. 10mm LED (Yellow)

3. Resistor 220 ohm

4. Breadboard Power Stick 3.3V / 5V

5. Li-Ion Rechargable Battery 7.4V 1200mAh

Trigger setting mode: (1 = Short ; 0 = No Short)

Jumpe AB

Momentary / High Output 00 (used in this tutorial)

Self Lock / High Output 01

Momentary / Low Output 10

Self Lock / Low Output 11

Based on the results,

1. The LED will turn on when we touch the .

2. If no touching detected, the LED will turn off.

 Operating voltage 2.0V~5.5V



Operating current @VDD=3V, no load



low power mode typical 1.5uA, maximum 3.0uA



response time max 220mS at low power mode @VDD=3V



Sensitivity can adjust by the capacitance(0~50pF) outside



Stable touching detection of human body for replacing traditional direct switch key



Low Power mode



Provides direct mode toggle mode by pad option(TOG pin)



Q pin is CMOS output



All output modes can be selected active high or active low by pad option(AHLB pin)



After power-on have about 0.5sec stable-time, during the time do not touch the key pad,



And the function is disabled



Auto calibration for life



At low power mode the re-calibration period is about 4.0sec normally,



When key detected touch and released touch, the auto re-calibration will be redoing after



about 16sec from releasing key



The sensitivity of TTP223N is better than TTP223-BA6’s.



But the stability of MOEDULE is woe than TTP223-BA6’s.
