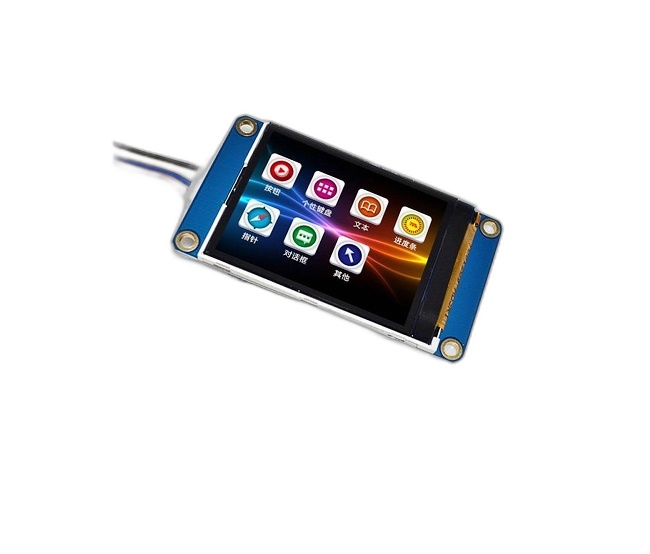

TJC 3.5″HMI Touchscreen UART Serial

Serial port command control. The software completes the interface. While the MCU develops the efficiency through the interaction command between the serial port and device.2. A variety of debugging way. It supports the serial port download and SD card download. It supports PC simulation debugging, as well as the synchronous debugging between the simulation and device3. Automatic upgrading online. TJC 3.5″HMI Touchscreen





Item Model: TJC3224T022-011NNo Touch Resolution: 320 x 240Size: 2.2inchCommunication: USART Serial interface level: 3.3V CMOS (compatible with 5V)Operating voltage: 4.75V-7VOperating temperature: -20-70degree  FLASH space: 4MB Bam: 2048

TJC 3.5″HMI Touchscreen UART Serial





Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.





RGB 65K true to life colo resistive TFT touchscreen





4-16M Flash memory for User Application Code and Data





Fonts Creator with Veatile Character Encodings(UTF-8 font code can display all the language words)





Interface: XH2.54 4 pin TTL serial interface



Input voltage: 4.7 – 7 V (5 V typical)



Input current: 145mA (max brightness), 15mA (sleep mode). Recommended power: 5V 500mA



Screen size: 1.8″,2.4″,2.8″,3.5″



Screen brightness: 180 cd/m^2,(0~180 nit, the interval of adjustment is 1%)



On board micro-SD card slot for program upgradation, FAT32. Suitable for up to 32GB SD card



Certificate: CE   en.wikipedia.org
