Tda8932 Amplifier Module 35W Digital

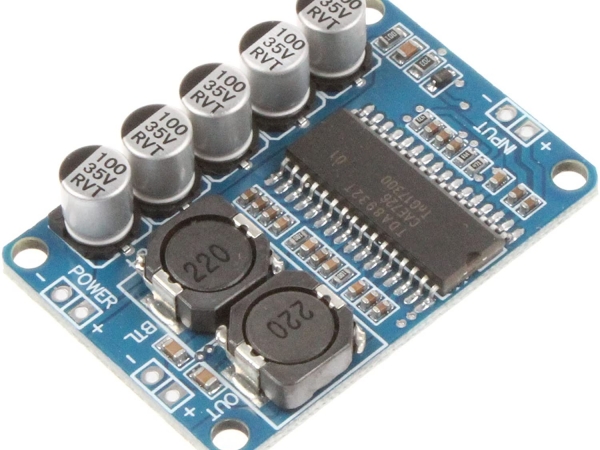

TDA8932 based Audio Amplifier Board module is a digital mono amplifier module that provides 35 Watt output.



This board uses a high-performance digital amplifier TDA8932 chip. Due to the small size, it is easily mounted



in any small space-based DIY audio amplifier project. It has high efficiency, high power, good sound quality



without additional installation of a radiator. Very suitable for the transformation of active speakers,



electroacoustic project implementation, product development, and other audio applications.



Features of TDA8932 Based Amplifier Board:



Working Voltage: DC 10V~30V, recommend voltage 24V



Current: More than 2A is required



Power output: 35W ×1 (mono)



Speaker Impedance: 4-8ohm (8 ohms optimum)



Circuit Configuration: Mono BTL output



PCB board size: 45 × 31 MM
