Stm32 Nucleo 64 Development Board

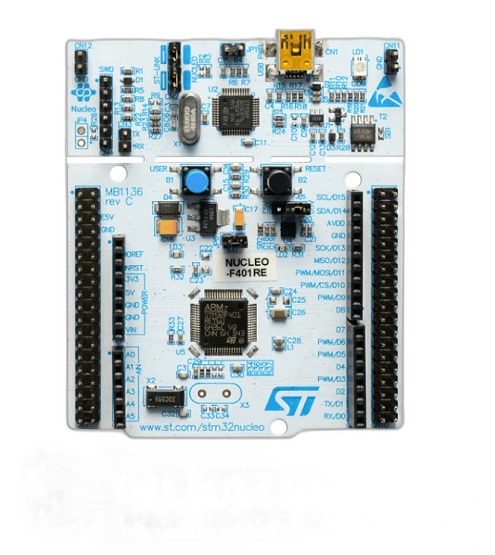

STM32 Nucleo-64 development board

STM32 Nucleo-64 development board provides an affordable and flexible way for use to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller.

For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO® Uno V3 connectivity support and the ST morpho heade allow the easy expansion of the functionality of the STM32 nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

STM32 nucleo 64 development board













STM32 microcontroller in an LQFP64 or LQFP48 package

1 user LED shared with ARDUINO®

1 user and 1 reset push-buttons

32.768 kHz crystal oscillator

Board connecto:



ARDUINO® Uno V3 expansion connector

ST morpho extension pin heade for full access to all STM32 I/Os





Flexible power-supply options: ST-LINK USB VBUS or external sources

Comprehensive free software libraries and examples available with the STM32Cube MCU Package

Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE





Features specific to some of the boards (refer to the ordering information section of the data brief for details)



Second user LED

External or internal SMPS to generate Vcore logic supply

24 MHz or 48 MHz HSE

User USB Device full speed, or USB SNK/UFP full speed

Cryptography

CAN FD transceiver

Board connecto:



External SMPS experimentation dedicated connector

USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK

USB Type-C® user connector

MIPI® debug connector

CAN FD header





On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port   /www.st.com
