Four lead wires, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Installation: Sensor end through the screw hole fixed and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.
Weighing Load Cell Sensor 20kg For Electronic YZC-133 With Wires.
Specifications :
Rated Load: 20Kg
Rated Output: 1.0 ±0.15mV/V
Zero Output: ±0.1mV/V
Cree: 0.03%F.S./30min
Input End: Red+, Black-
Output End: Green+, White-
Input Impedance: 1115±10% Ω
Output Impedance: 1000±10% Ω
Maximum working voltage: 15V DC
Operating temperature range: -20~60°C
Total Size: 80 x 13 x 13mm/3.14 x 0.51 x 0.51″(L x W x H)
Home » All Products » PZEM-004T 100A Single Phase Power Energy Meter Module

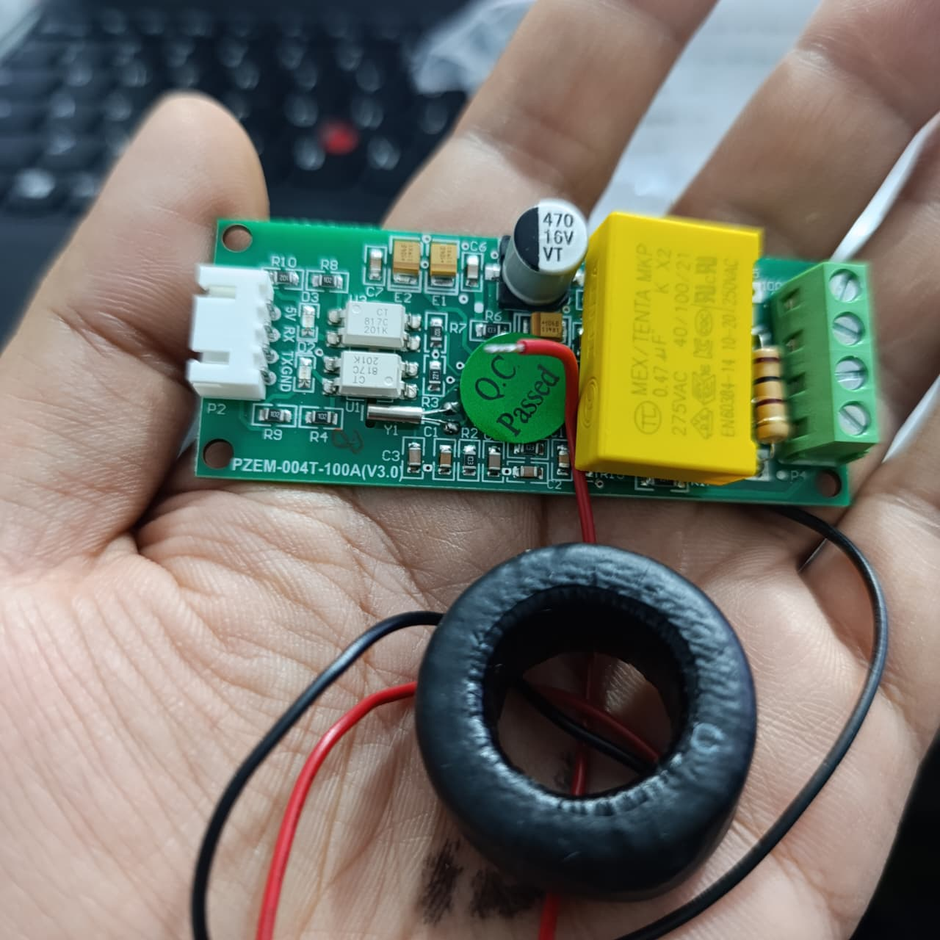

PZEM-004T 100A Single Phase Power Energy Meter Module
₨ 3,030
23 sold - 2 sold in last 28 days
| Weight | 1 kg |
|---|---|
| Dimensions | 2 × 2 × 2 cm |
| Quality | Orignal |
