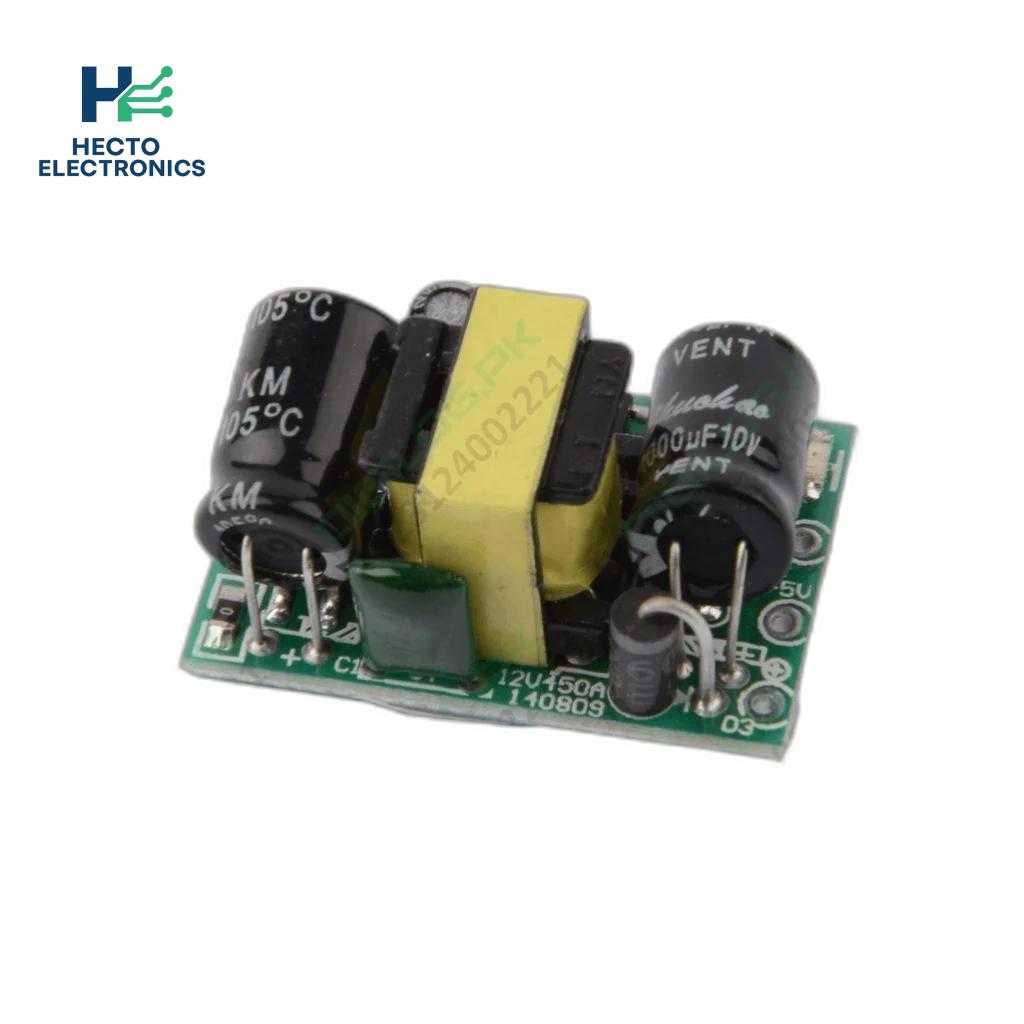

Professional Pcb Mount 5V 700Ma

5V 700mA 220W AC-DC precision Buck converter AC 3.5V to 5V DC step down transformer power supply module for WAVGAT also called DC to step down Transformer power supply module, PCB MOUNT 5V 700MA 3.5W AC-DC, PROFESSIONAL PCB MOUNT.



Features:





100% new and high quality!

This power supply for the industrial-grade insulation module power supply, temperature protection, overcurrent protection, and short-circuit protection, High and Low Voltage insulation

AC85 ~ 265V input voltage ac / dc, current 431 voltage stability accuracy DC5V output

Small size, stable performance, cost-effective





Specifications:





Condition: new

Quantity: 1 pcs

Input voltage: ca 85 ~ 265 V 50/60 hz or DC 100 ~ 370 V

Input: 0.0273A (AC110V) 0.014A (AC220V)

Input current: 20 a

Output voltage: DC 5 V (+/- 0.2 V)

Output current 700 mA

Power 3.5 W

Operating temperature-20 60 degrees

Relative Humidity 40-90% RH

Output 5 V, 0a minimum current, maximum current 700mA, maximum current: 800mA, output range: 5.2 4.8 V, wave wave: 60mV

Output power: 0-4 W (direct current)

Output efficiency: 80%

Superposition of the switch machine: Maximum 10%

Output voltage rise time: 100 ms maximum

Output voltage: 4.8-5.2 V recovery: Lock restart after recovery

Output protection against overpower: Yes, Recovery: block, restart after recovery

Protection against short circuits: Yes, automatic recovery after solving the problem

Temperature protection: Yes, Recovery: blocking, restart after recovery

Overcurrent protection: Yes, Recovery: blocking, restart after recovery





Package includes:





1 x power supply reducer module
