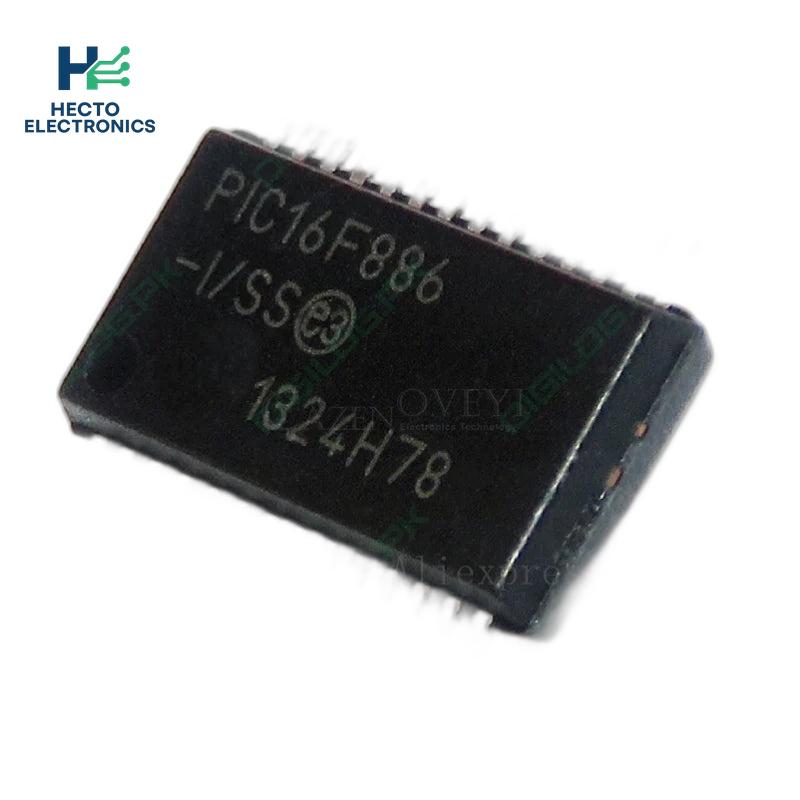

Pic16F886 Iso Soic28 Microcontroller Legs

With the PIC16F886-I/SO microcontroller from Microchip Technology, you can program a circuit to perform tasks that meet your desired specifications. This PIC16 Microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 20 MHz. Its flash program memory is 14KB. This device is based on the PIC core architecture. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. This is an 8-bit processor. Its ADC resolution is 10.



Features Of Microchip Technology PIC16F886 Controller:





Precision Internal Oscillator

Power-Saving Sleep mode

Power-on Reset (POR)

Selectable Brown-out Reset (BOR) voltage

Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

In-Circuit Serial Programming™ (ICSP™) via two pins

In-Circuit Debug (ICD) via two pins

Self-reprogrammable under software control

Programmable code protection

10-bit 11 channel Analog-to-Digital (A/D) Converter





Specifications Of 28Pin PIC16F886 Enhanced Flash-Based CMOS Microcontroller:





Program Memory Type: Flash

Program Memory Size (KB): 14KB

Speed: 20MHz

Number of I/O: 28

SRAM (B) : 368

Program Memory Size: 14KB

EEPROM Size: 256×8

Voltage – Supply (Vcc/Vdd): 2V ~ 5.5V

Data Converte: A/D 11x10b

Time: 2 x 8-bit, 1 x 16-bit





Datasheet



Package Include:





1 x PIC16F886 Microcontroller
