Product Description:

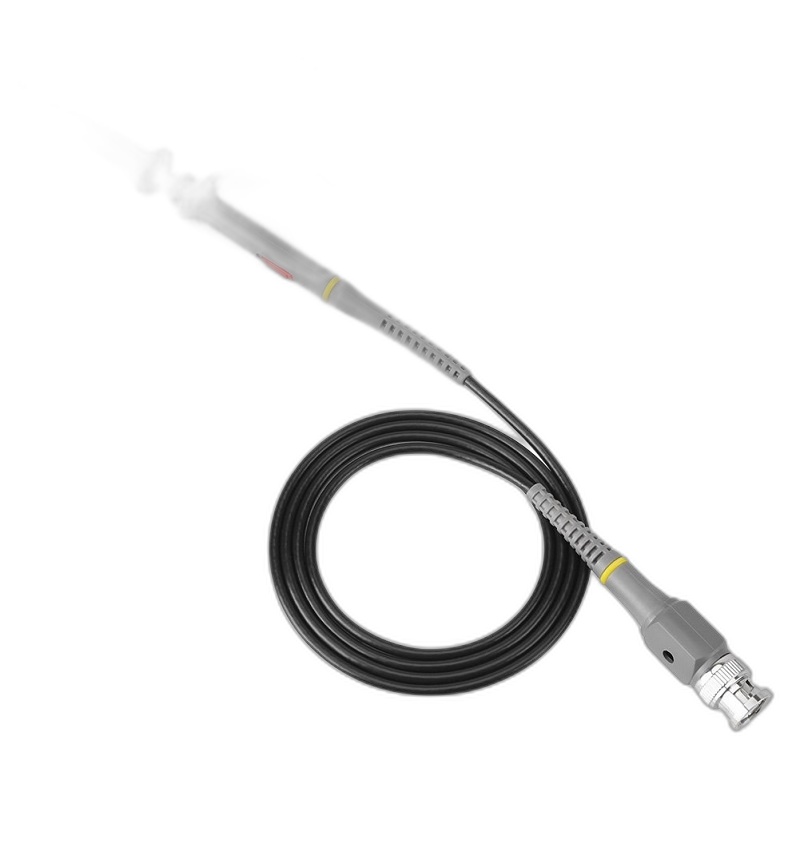

100Mhz Oscilloscope Probe Clip P6100
Descriptions:
This probe is good oscilloscope accessories, compact size, several functions combined in one, this probe is convenient to use. This probe is 100MHz ,with a switch for either 1x or 10x attenuation, stable performance. And providing several accessories designed to make probing and measurements a simple task.
Features:
Features stainless steel interface, stable performance, with CE certification, IEC1010 standard ,great choice for oscilloscope probe.
specification: 100Mhz Oscilloscope Probe Clip P6100
Model: P6100
Attenuation ratio: 1X/10X
Input resistance: 1 M Ω / 10MΩ
Input capacitance: 1X:85pF~120pF,10X:18.5pF~22.5pF
Compensation range: 10pF~30pF
System bandwidth: 1X: DC-6Mhz, 10X: DC-100Mhz
Input voltage: 1X: < 300VDC + AC Vp-p,10X: < 600VDC+ AC Vp-p
Operating temperature range: 15 ~ + 75
Not working temperature range: – 20 ~ + 60
Process: injection molding integration
Color:grey
Cable length: 120cm/47.2inch
Humidity: less than 85% (relative humidity)
Weight:126g
1X OR 10X: This probe is 100MHz Oscilloscope probes with a switch for either 1x or 10x attenuation, can meet your different needs.
DISTINGUISHED BY COLOR : There are marking circles in different colo help to identify different channels, you can tell the channel quickly and easily.
DETACHABLE HOOK TIP: The hook tip adopted detachable design, the hook is well protected by the plastic case.
LOCATING SLEEVES: These oscilloscope probes have locating sleeves which ensure the stability and reliability of the tip exposed to the test point.
COMPACT SIZE: Compact size, several functions combined in one, this probe is convenient to use.
