Mt3608 Step Up Booster Dc

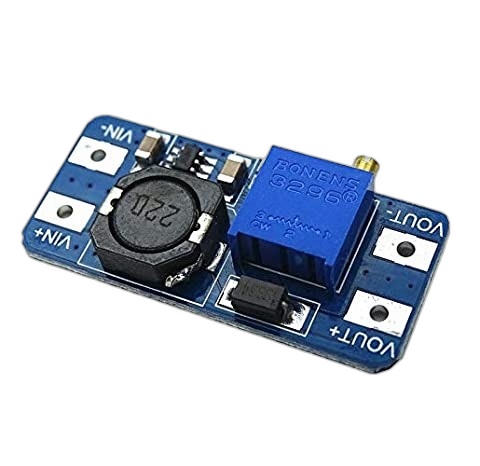

MT3608 Step up Booster Description:



MT3608 Step up Booster Adjustable step up module voltage regulator board input voltage 2V-24V to 5V-28V output voltage A boost converter (step-up converter) is a DC-to-DC power converter that steps up voltage (while stepping down current) from its input (supply) to its output (load). It is a class of switched-mode power supply (SMPS) containing at least two semiconducto (a diode and a transistor) and at least one energy storage element: a capacitor, inductor, or the two in combination. To reduce voltage ripple, filte made of capacito (sometimes in combination with inducto) are normally added to such a converter’s output (load-side filter) and input (supply-side filter).

Specifications:



Maximum output current: 2A



Input voltage: 2V-24V



Maximum output voltage: 28V



Efficiency: 93% in maximum



(Minimum) (input-output) difference voltage when input is at (2 V and 50% of max-input-V), loading at (50% and full rated current).



Product size: 36 x 17 x 14 mm/ 1.42 x 0.67 x 0.55 inch (L x W x H)

MT3608 Step up Booster About this item:

Method of use:



The adjustment of potentiometer can adjust output voltage, output voltage is greater than the input voltage.

Power for the boost converter can come from any suitable DC source, such as batteries, solar panels, rectifie, and DC generato.

A process that changes one DC voltage to a different DC voltage is called DC to DC conveion. A boost converter is a DC to DC converter with an output voltage greater than the source voltage.

A boost converter is sometimes called a step-up converter since it “steps up” the source voltage. An unregulated boost converter is used as the voltage increase mechanism in the circuit.

Package includes:



MT3608 DC-DC step up.

Attention:



The input voltage should not exceed the maximum input voltage.



The peak current output current no more than 2A.
