Mini Usb Blaster Altera Programmer

Mini USB Blaster Altera Programmer Description:

USB Blaster Mini Programmer Debugger USB interface

FPGA/CPLD download
Signal Tap II embedded logic analyzer
NIOS II debug mini USB programmer.1. Support 1.5V,1.8V,2.5V,3.5V and 5.0V.2. Support all ALTERA products : CPLD ( MAX3000, MAX7000, MAX9000 and MAX II ) ; FPGA ( Stratix, Stratix II, Cyclone, Cyclone II, ACEX 1K, APEX20K and FLEX 10K ) ;Active serial configuration device (EPCS1, EPCS4, EPCS16)
—- Now we have tested chip using this tool is: Cyclone (EP1C3, EP1C6, EP1C12, EP1C20) ; Cyclone II (EP2C5, EP2C8, EP2C35) ; Stratix (EP1S10, EP1S20, EP1S25) ; Stratix II(EP2S60) ; FLEX10K(EPF10K10, EPF0K30) ; ACEX1K(EP1K30) ; MAX7000(MAX7128SLC84, MAX7128) ; AETC100(MAX3000, MAX3128) ; MAXII(MAXII240, MAXII570, MAXII1270) ; EPCS(EPCS1, EPCS4, EPCS16) ; EPC(EPC1, EPC4)
3. Support AS, PS and JTAG program ( with Verify and Bank Check function) .
—- When we tested the chip above , we use the different program mode: JTAG ( Cyclone, CycloneII, Stratix II, Flex10K, Acex1K, Max7000 and Max3000) ; AS ( EPCS1, EPCS4, EPCS16 ) ; PS ( Stratix , Stratix GX )
4. Embedded logic analyzer function of Signal Tap II
5. Support NIOS II communication and debugger– When you use it to debug your Black Gold , it will not Pop-up warning
6. Faster — about 6 times than Byte blasterII
7. USB interface ! — you don’t need a PC with serial port now
8. 100% compatible with Official ALTERA USB Blaster

Mini USB Blaster Altera Programmer FEATURES:
Compatible with Altera USB blaster:
USB Blaster Mini Programmer Debugger.

CPLD: MAX3000, MAX7000, MAX9000, MAXII…

FPGA: Stratix , Stratix II, Stratix III, Stratix IV, Cyclone, Cyclone II, Cyclone III, Cyclone IV, ACES1K, APEX20k, FLEX10K..

Active serial configuration device:
EPCS1, EPCS4, EPCS16, EPCS64…

AS, PS and JTAG mode

Signal Tap II embedded logic analyzer

NIOS II debug* USB interface

Quartus II 4.0 and above veion

Windows XP, windows Vista, Windows 7 and Linux Windows 10.

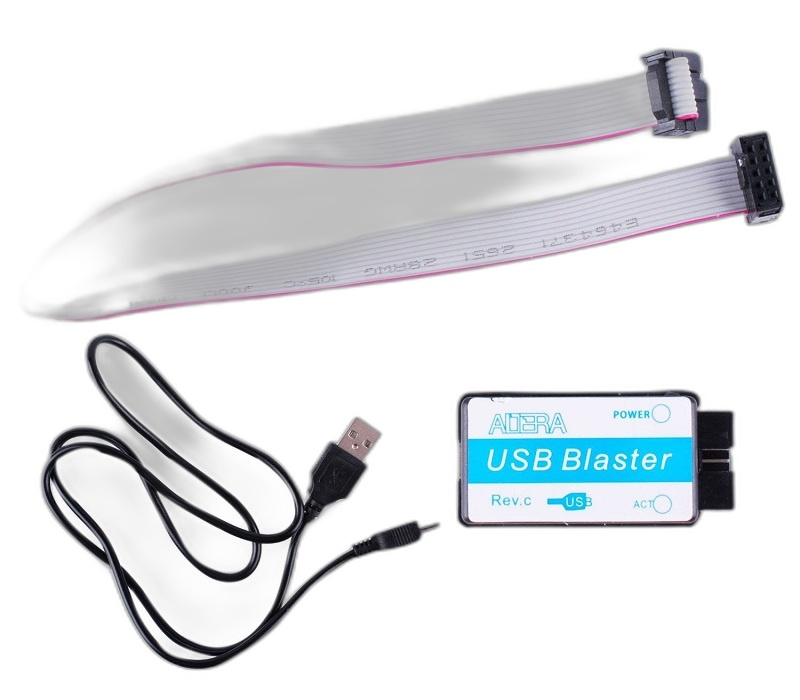

PACKAGE LIST:

USB BLASTER Programmer x1
10-Pin JTAG Connection Cable x1
USB cable x1

USB Blaster Mini Programmer.
Brand new and high quality.

Uses original Altera USB Blaster Mini Programmer.
