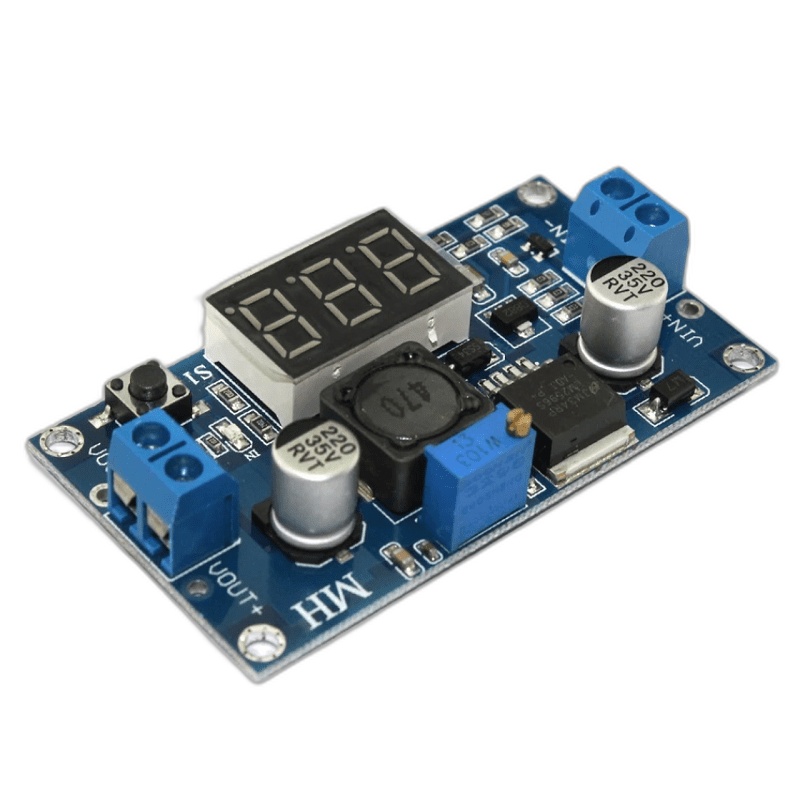

LM2596 Buck With Display Description:
LM2596 Buck With Display power module with Display the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with, other mainboards, and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it. LM2596 DC To DC Buck Converter In Pakistan
Module property: Non-isolation buck LM2596
Rectification mode: Non-synchronous rectifier
Input voltage:3V-40V
voltage:1.3V-35V
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Conveion efficiency:92%( highest )
Switching frequency:65KHz
ripple:30mV( maximum )
Load regulation:±0.5%
Voltage regulation:± 2.5%
Work temperature:-Minus 40 degrees – 85 degrees
Buck With Display Dc to Dc Step Down in Pakistan
LM2596 Buck With Display Features:
LM2596 DC To DC Buck Converter In Pakistan
DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator.
capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output veion.
The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulato.
Output ripple: 30mA maximum
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Dynamic Response speed: 5% 200uS
Input voltage:4.75-35V
voltage:1.25-26V(Adjustable)
current: Rated current is 2A, maximum 3A(Additional heat sink is required)
Conveion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Non-isolated step-down (BUCK) switching regulator.
Short circuit protection: Current limiting, self-recovery
Potentiometer adjustment direction
synchronous rectification
Model name: DC-DC LM2596S buck module
Input voltage:3.2V~46V (recommended for use in 40V)
voltage:1.25V~35V
current:3A (maximum)
Conveion efficiency:92% (highest)
Output ripple:<30mV
Switching frequency:65KHz
Working temperature:-45 ~ +85en.wikipedia.org
Dimension:21mm * 43mm * 14mm (length * width * height)
1x LM2596 DC To Dc Buck Converter Step Down Module Power Supply in Pakistan
