Ky 025 Reed Switch Sensor

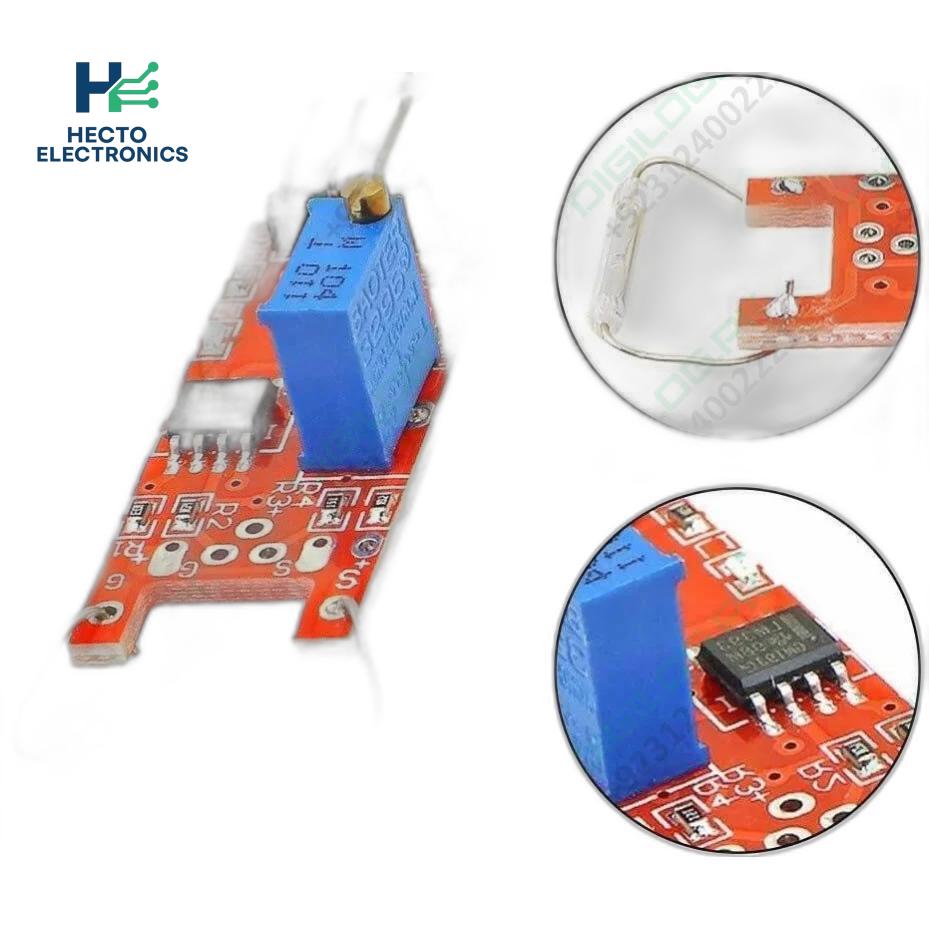

KY-025 Reed Switch Module for Arduino is a small electrical switch operated by an applied magnetic field, commonly used as proximity sensor. The module has both digital and analog outputs. A trimmer is used to calibrate the sensitivity of the sensor. This module can be applied in Program-controlled switches, copie, washing machines, refrigerato, cameras, Disinfection cabinet, door, window magnetic, electromagnetic relays, electronic weighing, level meter, gas meter, water meter, and so on. The KY-025 module consist of a 2x14mm normally open reed switch, a LM393 dual differential comparator, a 3296W-104 trimmer pontetiometer, six resisto and two LEDs. The board has an analog and a digital output.















Features And Specifications OF Reed Sensor Switch:





Clean, good waveform driving ability, more than 15mA.

Working voltage 3.3V-5

Output format: digital switching output (0 and 1)

A  fixed bolt holes for easy installation

PCB size: 3.2cm x 1.4cm

Digital output using a wide voltage LM393 comparator

Color: Blue

Material: PCB

Open reed switch

3 Pin module

Output format: digit switch output (0 and 1)

Fixed bolt hole for easy installation

Applies to PBX, photocopie, washing machines, refrigerato, cameras, disinfection cabinets, doo, window magnetics, electromagnetic relays, electronic weighing, level mete, gas mete, water mete, etc





Package includes:





1xReed Switch Sensor module
