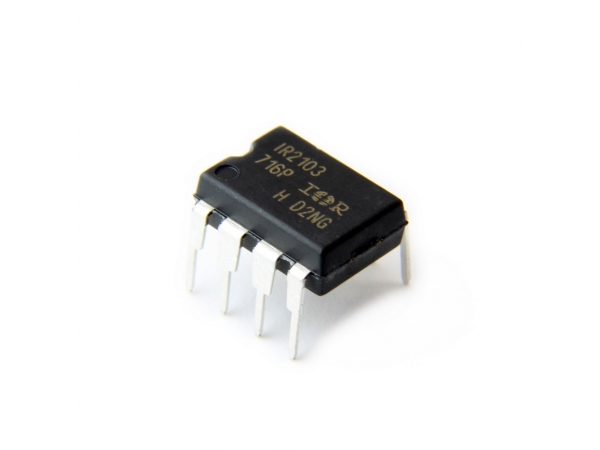

Ir2103 Half Bridge Drive Ic

Floating channel designed for bootstrap operation



? Fully operational to +600V



? Tolerant to negative transient voltage



? dV/dt immune



? Gate drive supply range from 10 to 20V



? Undervoltage lockout



? 3.3V, 5V and 15V logic compatible



? Cross-conduction prevention logic



? Matched propagation delay for both channels



? Internal set deadtime



? High side output in phase with HIN input



? Low side output out of phase with LIN input
