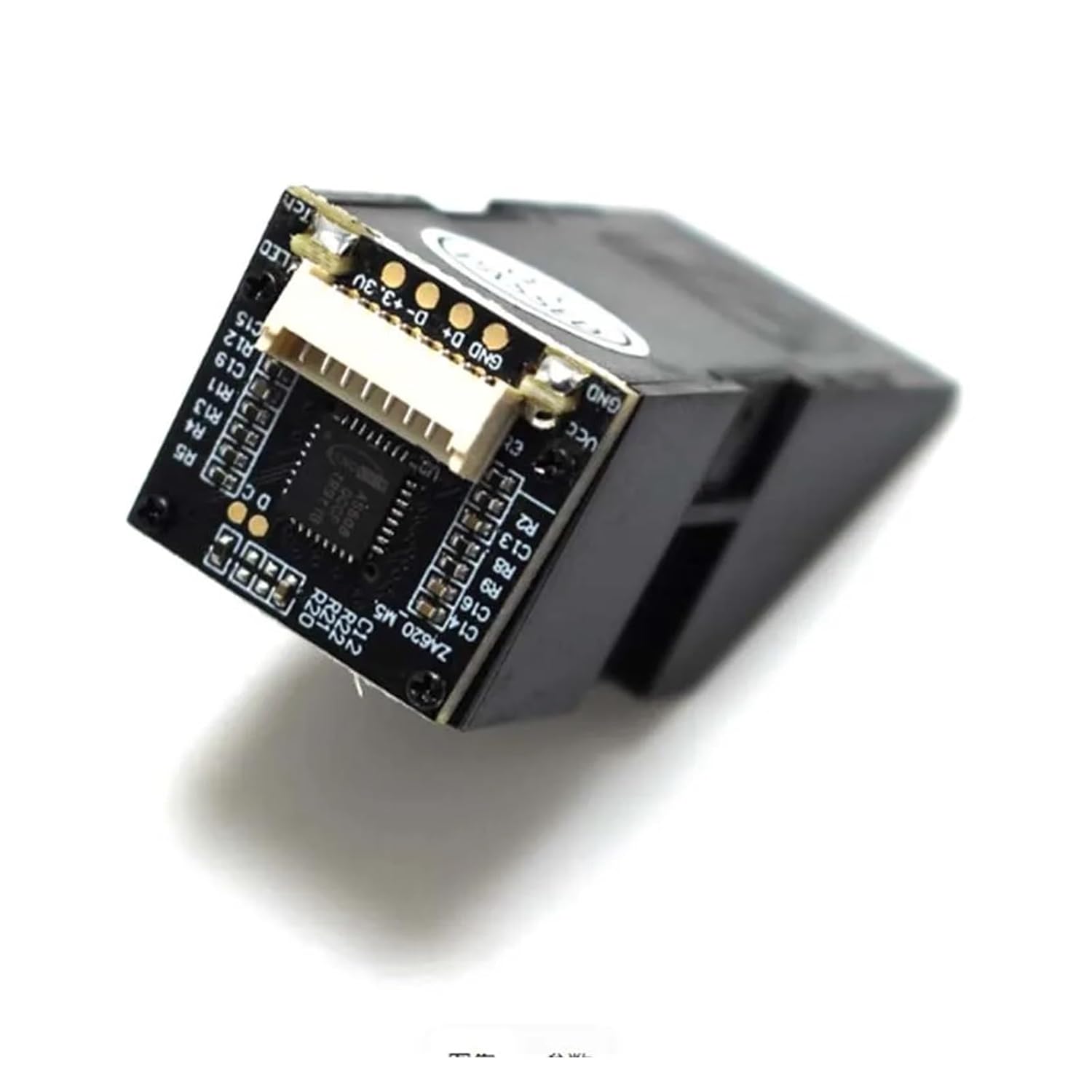

AS608 Optical Fingerprint Sensor.
AS608 Fingerprint Reader Sensor Module Optical Fingerprint. Fingerprint Module For Arduino Locks Serial Communication Interface. Fingerprint Reader Module, Optical Fingerprint Module Reader Sensor Access Control Attendance Recognition Device
Simple to use: as long as there is a serial microcontroller, embedded can operate the module, MSP430, 51, AVR, PIC, STM32, ARM, FPGA, Arduino controller, pcDuino, etc. can operate the module.
You can also use the computer’s serial port to control the module through the serial port.
Secure your project with biometrics – this all-in-one optical fingerprint sensor will
make adding fingerprint detection and verification super simple. These modules are
typically used in safes – there’s a high powered DSP chip that does the image
rendering, calculation, feature-finding and searching. Connect to any microcontroller
or system with TTL serial, and send packets of data to take photos, detect prints, hash
and search. You can also enroll new finge directly – up to 162 finger prints can be
stored in the onboard FLASH memory.
We like this particular sensor because not only is it easy to use, it also comes with
fairly straight-forward Windows software that makes testing the module simple – you
can even enroll using the software and see an image of the fingerprint on your
computer screen. But, of coue, we wouldn’t leave you a datasheet and a “good
luck!”
AS608 Optical Fingerprint Sensor About
Supply voltage: 3.6 – 6.0VDC
Operating current: 120mA max
Peak current: 150mA max
Fingerprint imaging time: <1.0 seconds

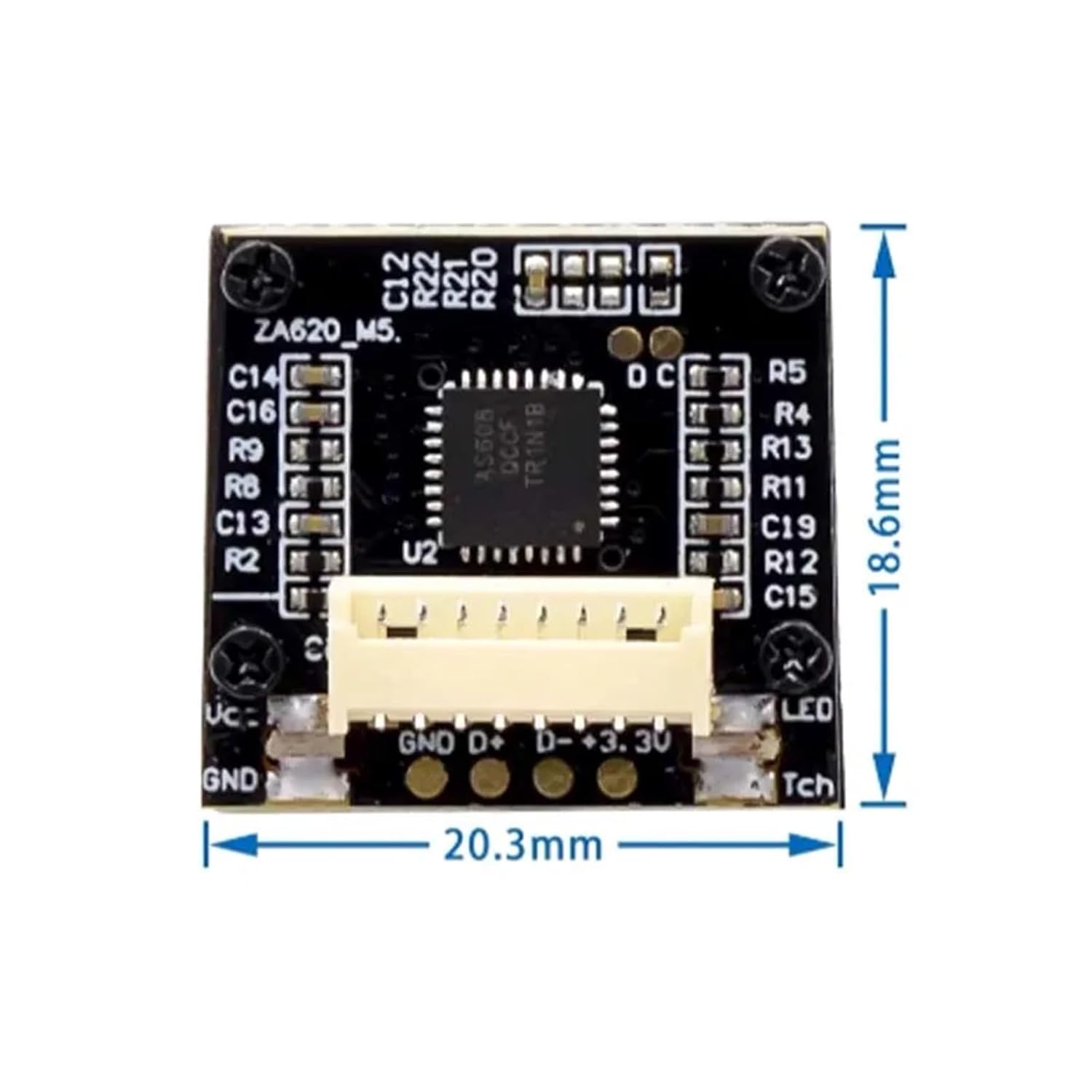

Window area: 14mm x 18mm
Signature file: 256 bytes
Template file: 512 bytes
Storage capacity: 162 templates
Safety ratings (1-5 low to high safety)
False Acceptance Rate: <0.001% (Security level 3)
False Reject Rate: <1.0% (Security level 3)
Interface: TTL Serial en.wikipedia.org
Baud rate: 9600, 19200, 28800, 38400, 57600 (default is 57600)
Working temperature rating: -20C to +50C
Working humidity: 40%-85% RH
Full Dimensions: 56 x 20 x 21.5mm
Weight: 20 grams
