Hm 10 Hm10 Bluetooth Module

HM-10 HM10 Bluetooth Module





This small size Bluetooth 4.0 TTL transceiver module allows your target device communicate with your iPhone/iPAD, IOS 6 or Android 4.3 above devices.

It’s easy to use and completely encapsulated. You can set it as slave or master. You can use AT command set the baudrate.

Ultra-low standby power consumption 90uA~400uA. Power input: 3.6V-6V DC(Can not higher than 6V).

Coverage up to 60 mete. Built in PCB antenna. Size: 43mm x 15mm. Color: Blue. Net Weight: 4g.

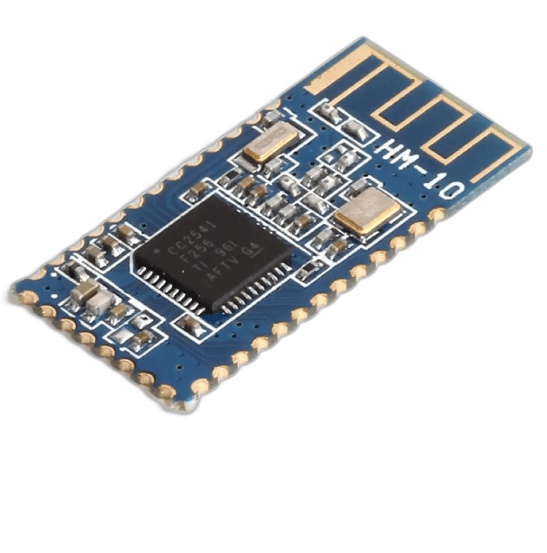

HM-10 HM10 Bluetooth Module



BT Veion: BT Specification V4.0 BLE

Working frequency: 2.4GHz ISM band

Modulation method: GFSK (Gaussian Frequency Shift Keying)

RF Power: -23dbm, -6dbm, 0dbm, 6dbm

Speed: Asynchronous: 2-6K Bytes, Synchronous: 2-6K Bytes

Security: Authentication and encryption

Service: 0xFFE0 (Modifiable use AT+UUID command)

Characteristic: 0xFFE1 (Modifiable use AT+UUID command)

Characteristic: Notify and Write (Modifiable use AT+UUID command)

Power: +2.5V~3.5VDC 50mA

Power: Active state 8.5mA; Sleep state 50~200uA

Working temperature: –20 ~ +105 Centigrade

Size: HM-10 27mm x 13mm x 2.2 mm
