Esp32 Wemos Lolin32 Esp32 Wifi

Online Shopping website for ESP32 Wemos LoLin32. Here you get ESP32 Wemos LoLin32 in reasonable price in karachi, lahore, islamabad, rawalpindi, peshawar, quetta, multan and all over pakistan The Wemos LoLin32 is a development board built around the Espressif ESP-WROOM-32 microcontroller. It boasts 4MB of memory and offe WiFi and Bluetooth connectivity. The Wemos LoLin32 has the particularity to propose a connector for LiPo battery. The connector is JST XH2-2mm. It has a key that prevents revee polarity. Charging the battery and programming will be done using the usual micro-USB connector.







Unlike the fit ESP32 development cards, this card developed by Wemos.cc is narrower. It leaves a row of connecto on each side of the board free on the breadboard.

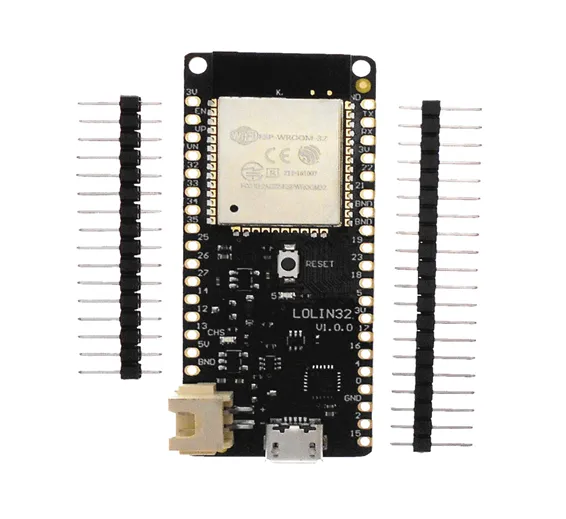

The WeMos LOLIN32 board is based on the ESP-WROOM-32 module and adds a LiIon/LiPo battery charging circuit, a USB to serial converter IC and a USB port. Solder the heade to the PCB and use it directly on any breadboard. The ESP8266 is great for small projects where you don’t need so many I/Os, processing power or interfaces.



Specifications:





240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS

Integrated 520 KB SRAM

Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP

Integrated dual-mode Bluetooth (classic and BLE)

4 MByte flash include in the WROOM32 module

On-board PCB antenna

Ultra-low noise analog amplifier

Hall sensor

10x capacitive touch interface

32 kHz crystal oscillator

26 x Digital I/O pins

12 x ADC input channels

2 x I2S Audio

2 x DAC

PWM/timer input/output available on every GPIO pin

OpenOCD debug interface with 32 kB TRAX buffer

SDIO master/slave 50 MHz

SD-card interface support





Resources





ESP32 Datasheet

Schematic

Driver Download

ESP32 Firmware





Package Includes:





1 X WeMos ESP32 + LiPo Input

2 X 20 Pin Header
