- Tips
ESP32 Development Board, standard 1.9-inch TFT screen and CTP/RTP/NTP, support one-key automatic download, provide LVGL demo and arduino examples.
- Overview

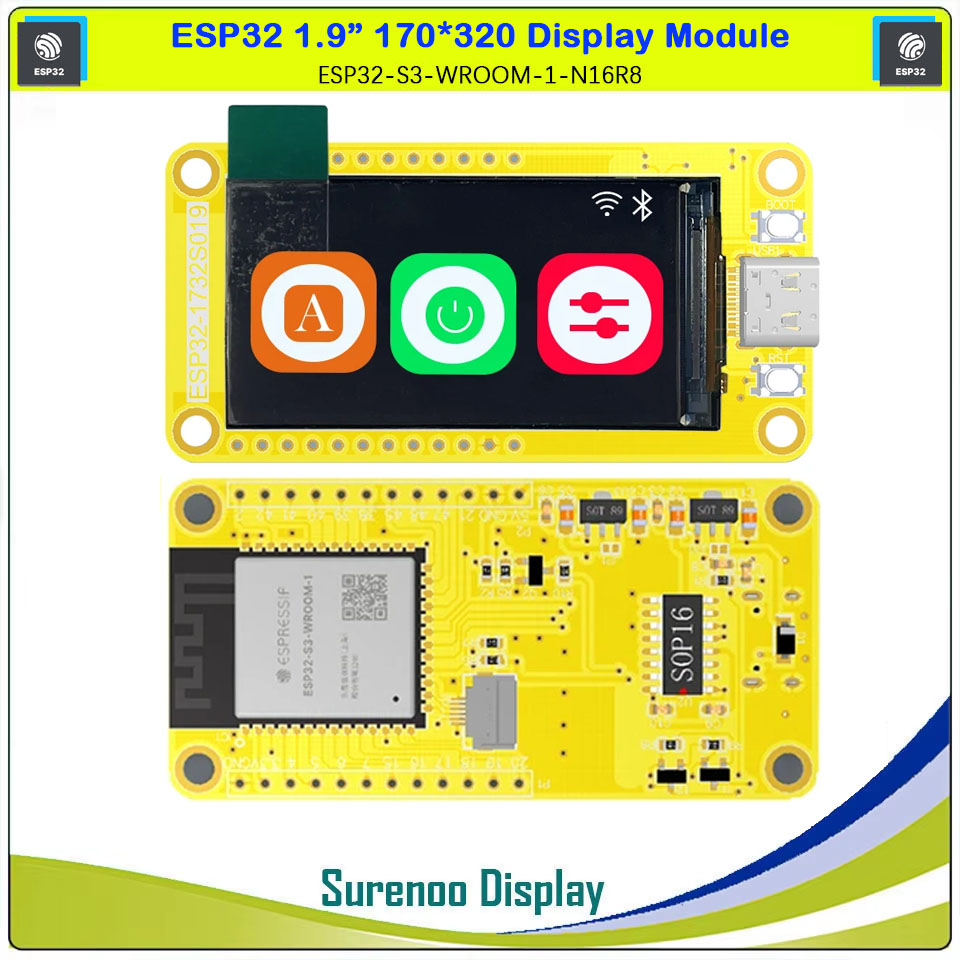

This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 170*320 IPS Display, Without touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface, IO Port available, this module supports development in Arduino IDE, ESP IDE, Micropython and GUITION.
- Product Parameters
| Item | Description |
| Display Color | 16-Bit RGB Color |
| SKU | ESP32-1732S019N: Without Touch Panel |
| Size | 1.9 Inch |
| Type | TFT |
| Controller | ST7789 |
| Touch Type | Without Touch Panel |
| Resolution | 170*320(Pixel) |
| Module Size | 32.00*65.00(mm) |
| Effective Display Area | 22.70*42.72(mm) |
| View | IPS (Full Angle) |
| Operating temperature | -20℃~70℃ |
| storage temperature | -30℃~80℃ |
| Operating Voltage | 5.0V (Support Wireless Power Supply) |
| Power consumption | About 120MA |
- Features
>> 1.9-inch color screen, support 16 BIT RGB 65K color display, display rich colors
>> 170X320 resolution
>> The sample program has been programmed in the factory and can be plugged in
>> With TF card slot for easy expansion storage
>> Provide arduino library functions and sample programs to facilitate rapid secondary development
>> Lithium battery charging and discharging circuit with overcharging and discharging protection
>> Support one-click download program
>> Military-grade process standards, long-term stable work
- Controller (ESP32-S3-WROOM-1U-N16R8)
