Arduino Breadboard Shield

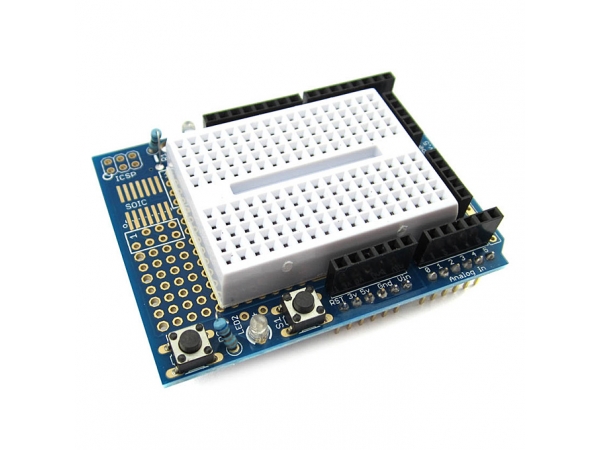

This is a design for an open-source prototyping shield for Arduino Uno / Mega / Duemilanove. It has tons of cool features, to make prototyping on your Arduino easy.







Features:





Reset button up top



ICSP header



Lots of GND and +5V rails



DIP prototyping area makes it easy to add more chips



SOIC prototyping area above USB jack for up to 14-pin SOIC chip, narrow medium or wide package.



A ‘mini’ breadboard included



Extra 6mm button



Compatible with: Arduino Uno, Mega, Duemilanove, Arduino NG, Arduino Diecimila.



Tutorial using Proto Shield for LED
