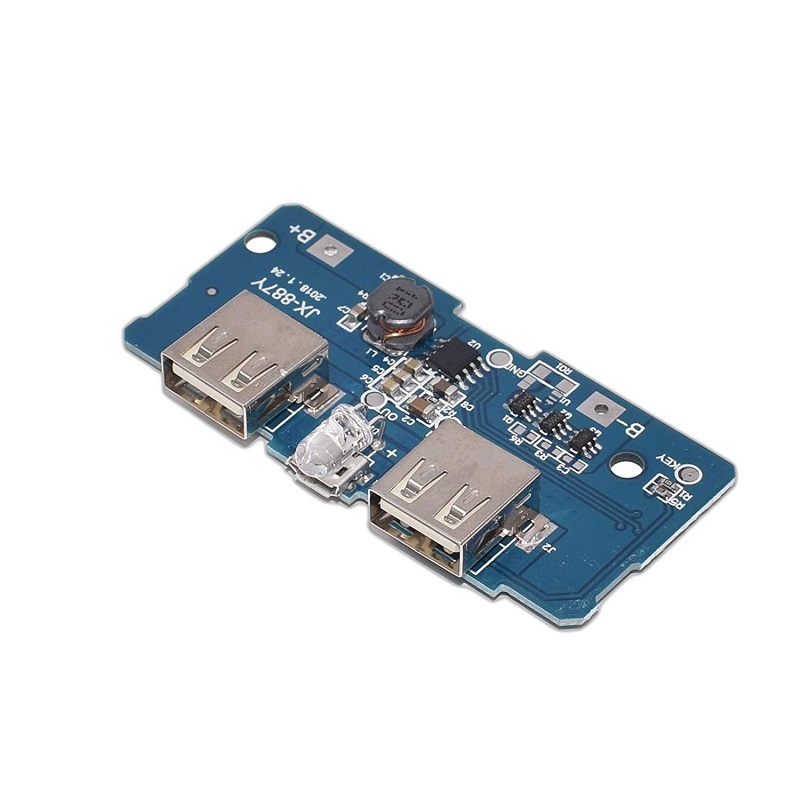

5V 1 2 1A Usb

Power Bank Charging Module



 Over Charging Protection

 over-discharge protection,

Besides, It is an intelligent output device after charging full

 Automatically stop charging. So, to prevent mobile phones overcharge.

The stable Output voltage. Moreover, it will not harm user devices.



This is the mobile power module Accessories, 18650 Circuit board shell.



Meet the individual needs of your DIY, but you must undetand basic electronic assembly.



Power Bank Kit Power Bank Charging Module



Motherboard comes with protection function: Charging overcharge protection, over-discharge protection, overcurrent protection.



Intelligent output device after charging full, automatically stop charging, to prevent mobile phones overcharge.



Output voltage and current stable, will not harm user devices.

The circuit board is connected to the battery negative B-, B + is the positive, do not connecting reveed, connecting reveed will burn the board, the battery is connected in parallel welding, assembling battery. Note that the insulation between the battery and the circuit board, battery lead not to touch the circuit board, so as not to cause a short circuit.



Power Bank Charging Module Specifications:



Micro USB input: 5V 1A/2A

USB Output: 5V 2A (Dual USB interface)

Charging display: intelligent led level

Batteries Type: liquid lithium-ion batteries (18650) 3.7 lithium-ion battery

4-level LED lamp display power, not working state intelligent automatic shutdown;

The built-in lithium battery protection IC, over-current, overpressure, under voltage protection;

Dual USB output ports.

Dimensions: 68 x 34 x 9 mm (LxWxH)

Weight: 10 gm

Input port: Micro USB

Input requirements: 5V constant voltage power supply can do charge input power, the most matching charger for 5V 1A above Output port: USB

Output paramete: 5V1A/5V2A

Requirements for rechargeable batteries:

Compatible Batteries: 18650 batteries, cell phone batteries, flat-panel batteries, MP3 batteries, etc. 3.7v-4.2V polymer Lithium battery, en.wikipedia.org



This is the mobile power module Accessories, 18650 Circuit board shell Power Bank Kit.



Meet the individual needs of your DIY, but you must undetand basic electronic assembly.

Motherboard comes with protection function: Charging overcharge protection, over-discharge protection, overcurrent protection.



Intelligent output device after charging full, automatically stop charging, to prevent mobile phones overcharge.



Output voltage and current stable, will not harm user devices.
