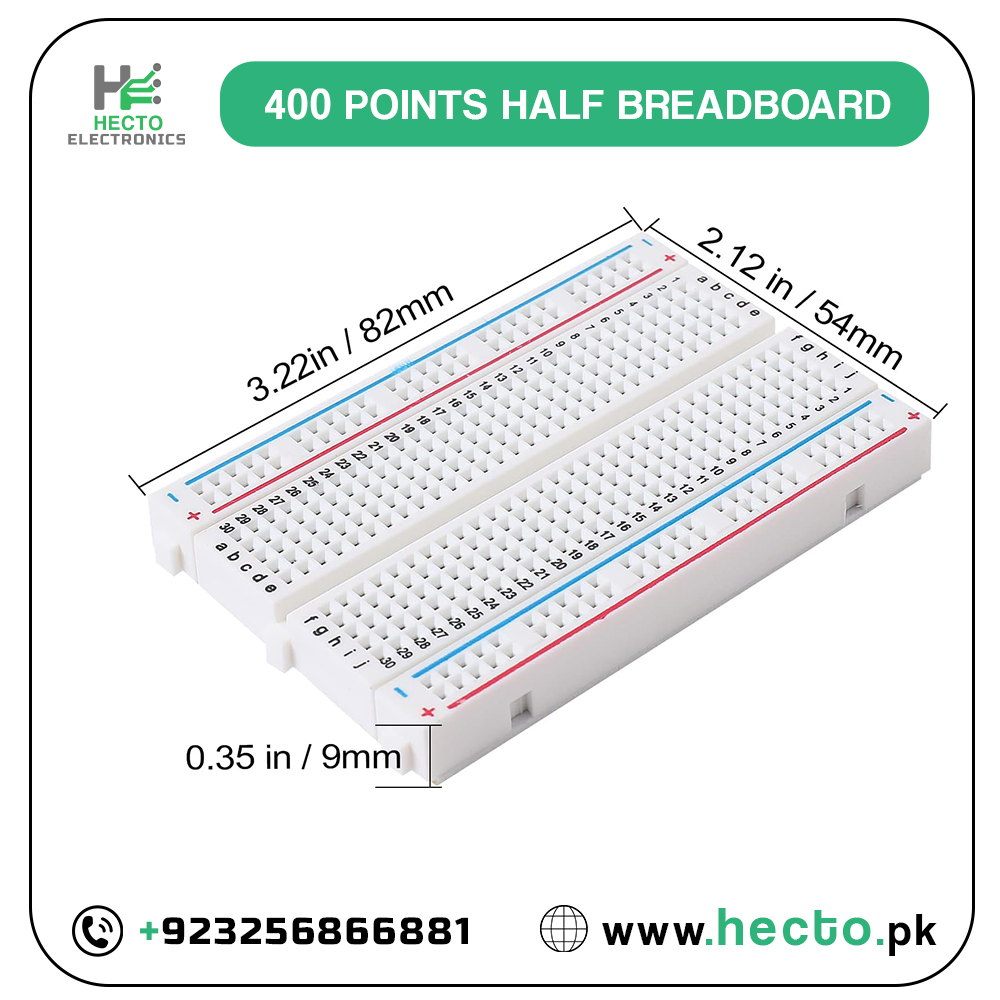

400 Points Solderless Board Kit for Raspberry pi and Arduino | Half solderless

Electric conduction of holes

Holes of 1a,1b,1c,1d,1e are conductive. Holes of 2a,2b,2c,2d,2e are conductive. Etc. Holes of 30a,30b,30c,30d,30e are conductive.

Holes of 1f,1g,1h,1i,1j are conductive. Holes of 2f,2g,2h,2i,2j are conductive. Etc.Holes of 30f,30g,30h,30i,30j are conductive.

There are two sets of positive electrode holes. Each set of positive electrode holes is conductive.

There are two sets of negative electrode holes. Each set of negative electrode holes is conductive

Connecting the breadboard

The breadboards can be connected to each other.

Using the breadboards

The breadboards a
