4 3 Inches Tjc Hmi

Features:

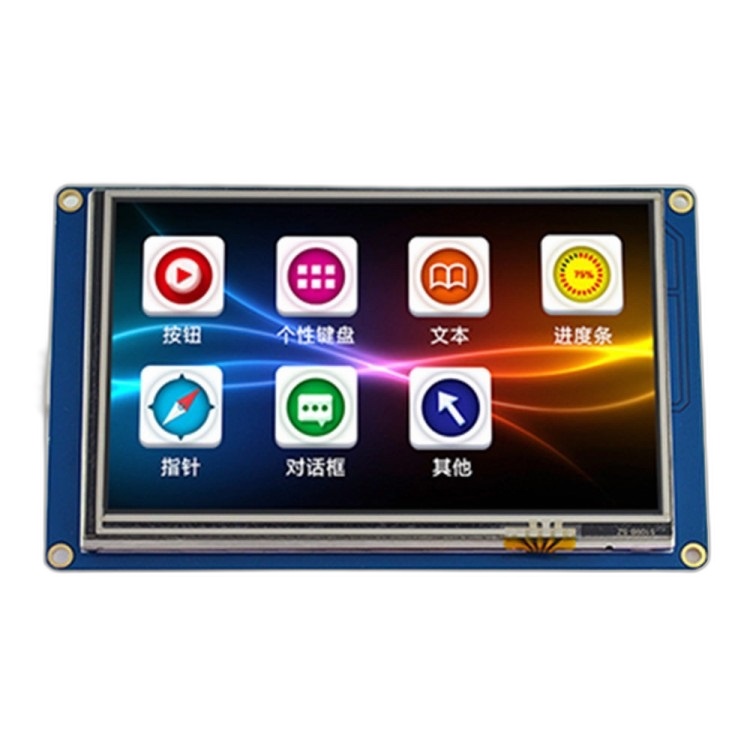

4.3 Inches TJC HMI LCD Display Module Touch Screen For Raspberry Pi





RGB 16-bit color real screen

Supports multiple configuration controls

Supports basic GUI instructions

Supports BMP, JPG, JPEG, PNG image format

Supports the automatic update of the superior software, and the firmware of the device is updated automatically

Backlight attenuation 100, sleep mode, standby current 20 mA, compatible with touch activation function

Supports serial download and SD card download in two ways, supports analog debugging by PC, supports simulator and debug device synchronization.

4.3 inch TJC TFT HMI LCD Touchscreen that provides a control and visualization interface between a human and a process, machine, application or appliance. TJC is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.TJC includes a hardware part (a series of TFT boards) and a software part. The TJC TFT board uses only one serial port to communicate. It lets use avoid the hassle of wiring. We noticed that most enginee spend much time in application development but get unsatisfactory results. As a solution to this situation, TJC editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that use spend less time in programming, which will reduce 99% of their development workloads.



Specifications:



Touch method: resistant touch

Operating voltage: 4.75-7 V

FLASH space: 4 MB

RAM space: 2048 bytes

Resolution: 320 * 240

Operating temperature: -20 / + 70 ° C

Communication interface: USART serial interface

Level interface: 3.3 V CMOS (5 V compatible)

4.3 Inches TJC HMI LCD Display Module Touch Screen For Raspberry Pi



Package Includes:



1x LCD screen module

1x Cable
