Name: 1 Channel Relay Module For Arduino single channel relay module
SKU: 434
Availability: InStock

1 Channel 5V Arduino Relay Module for Arduino PIC AVR DSP ARM. Single-channel relay, a wide range of microcontrolle such as Arduino, AVR, PIC, ARM and so on can control it.
The 5V relay module circuit, each one needs 15mA-20mA driver current and equipped with high current relay: DC 30V / 10A, AC 250V / 10A. This one channel module has a standard interface that can be compatible with a microcontroller.
This 5V Arduino relay module has on the high level and low level-trigger mode, friends who do not undetand, have a look high-level trigger refe to the signal voltage between input and trigger, can be undetand as a signal input with VCC cathode short-circuit triggered away.
Low-level trigger refe to the signal voltage between the input terminal and Earth OV trigger, can be undetand as the signal input terminal and the GND negative electrode short circuit triggered away 1-channel relay module connection.

Features of 1 Channel 5 Volts Arduino Relay Module:

With isolation groove in the control area and load area.
With power and relay action indication, bright when connect and go off when disconnects.
When there is a signal in signal input, public side and the common side will break over.
It can be not only used as a microcontroller development board module but also as a home appliance control.
It can not only control the DC or AC signal but the 220V AC load.
With a permanent open and close vents contact.
It is convenient to connect with blue KF301 terminal access control cable.

Specification of Single One Channel 5V Best Arduino Relay Module:

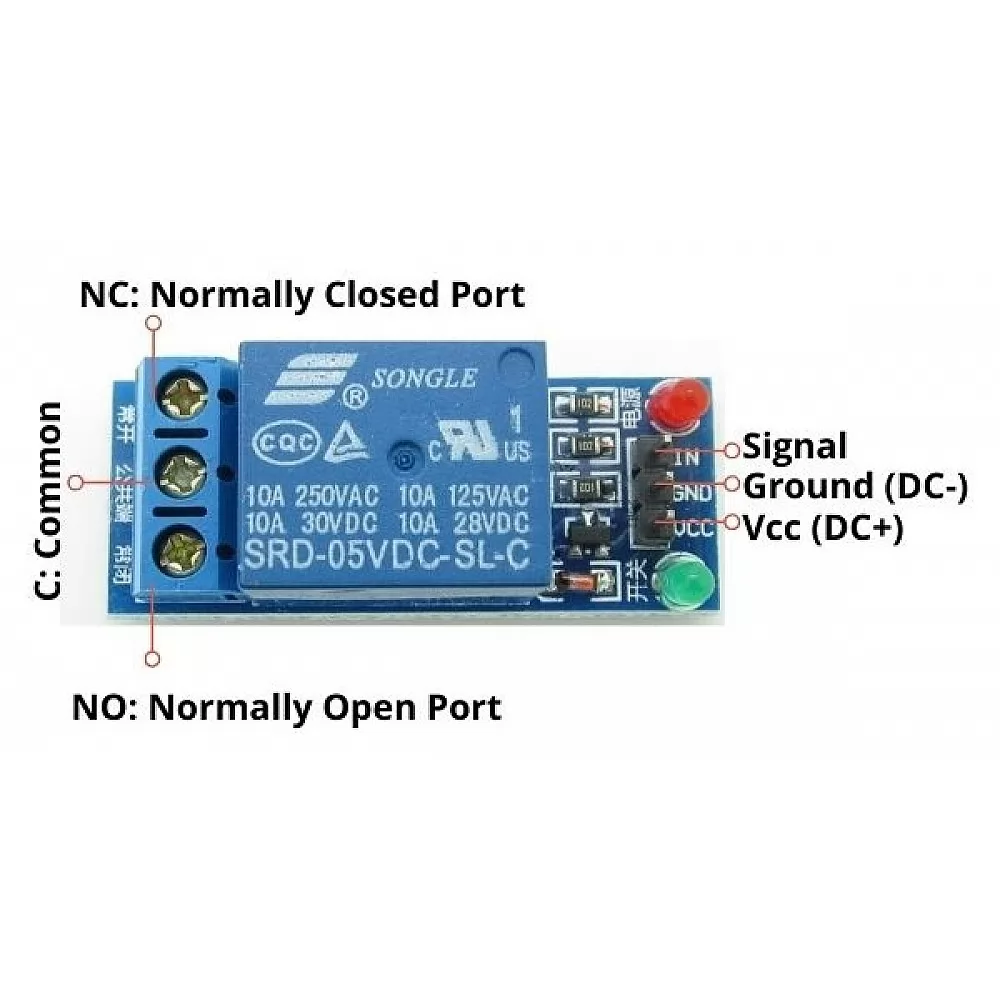

VCC: Power interface,5V
GND: Ground
IN: Control interface.
Drive Current: At least 4mA
COM: Control circuit ground, connect to GND
Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62”
Weight: Approx. 12g

Package Includes:

1 x 1 Channel 5V Arduino Relay Module
