0.96 TFT Display IPS Description

Feature:

Size: 0.96 Inch

Material: New IPS color screen, the color is more vivid than ordinary TFT LCD screen

Resolution: 80*160 display, direction can adjust horizontal screen vertical screen

Control chip: ST7735

Display area: 10.8 x 21.696mm

Physical size: 24 x 30mm

Interface type: SPI interface

Number of pins: 7

Display color: 65K full color

Working temperature: -20~70°C

Working voltage: 3.3V

Net weight: 5g

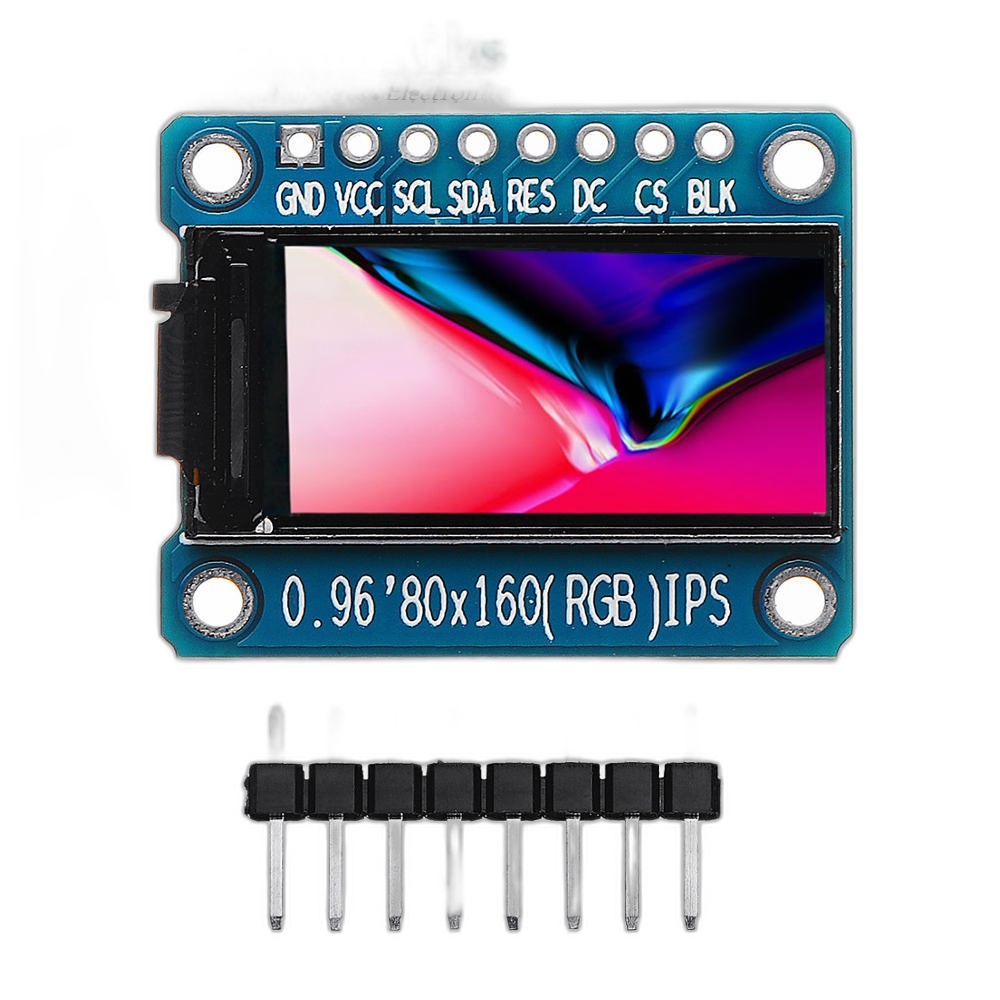

Interface definition:

1> GND (Power ground)

2> VCC (Power +3.3)

3> SCL (SPI clock line)

4> SDA (SPI data line)

5> RES (LCD reset, LCD needs to be reset once after power-on)

6> DC (SPI data/command selection pin)

7> BLK (LCD backlight control, default can be left floating, low level to turn off the backlight)
